Maintaining a sharp chain is single-handedly the most effective way to ensure your chainsaw cuts efficiently, reduces operator fatigue, and stays safe during operation. While standard file sizes like 5.2 mm (13/64") and 4.0 mm (5/32") get plenty of screen time, the 4.5 mm round file occupies a very specific, critical spot in wood-cutting operations. Using the wrong diameter file alters the tooth cutter geometry, leaving you with either an aggressive tooth that grabs and snaps or a dull edge that turns clear wood into useless fine powder.

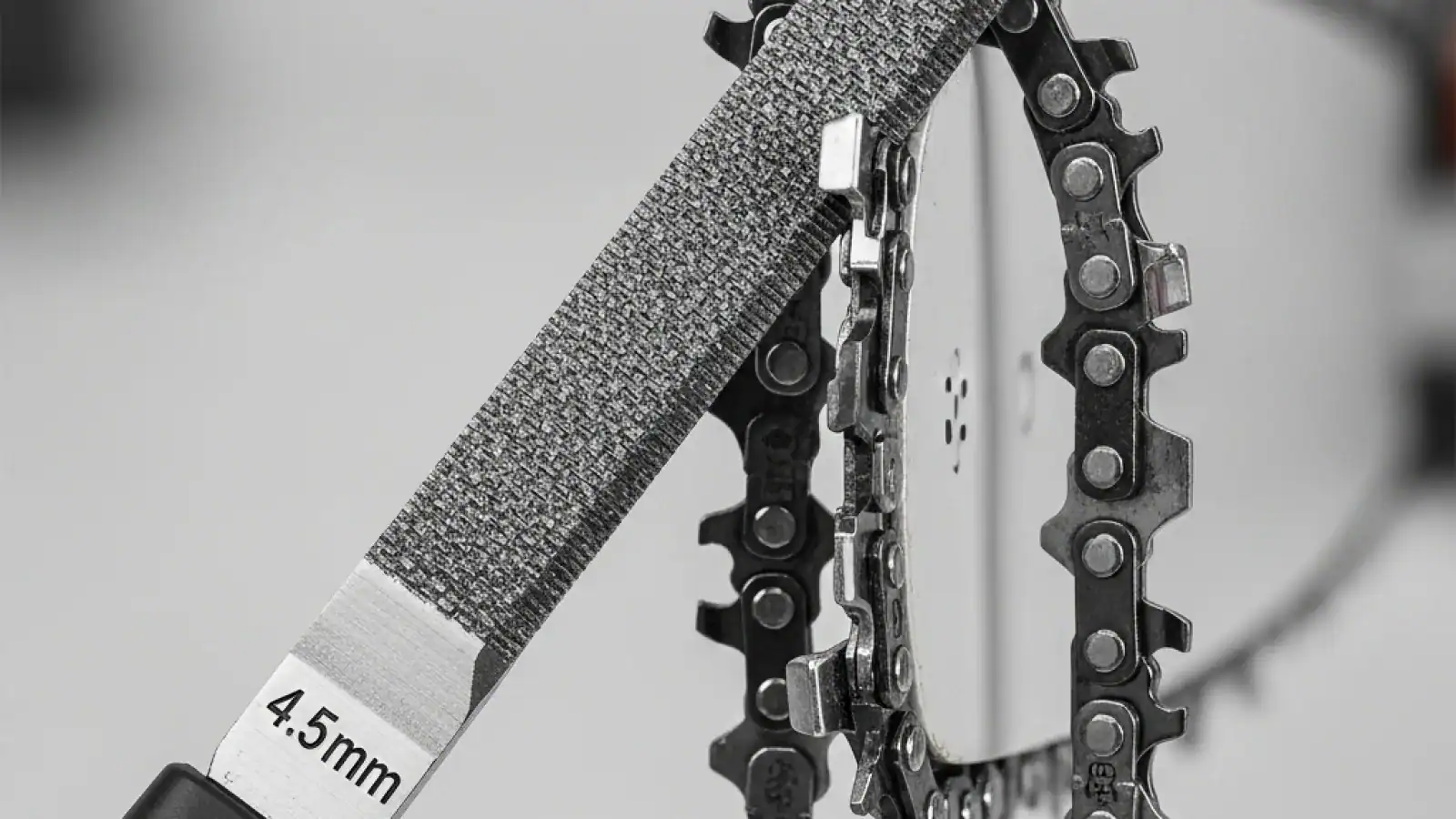

Quick answer: A 4.5 mm chainsaw file (commonly sold as an 11/64" file in imperial measurements) is specifically designed for sharpening .325" pitch chains, particularly semi-chisel and full-chisel cutters found on mid-sized chainsaws. You should use it when the cutter steel has worn down past its initial brand-new profile or when specified by manufacturers like STIHL and Oregon for micro-pitch and specialized .325" chain profiles. Sharpen at a 30-degree angle with a light upward pressure, maintaining a consistent stroke count on every tooth.
Understanding File Sizes: The 4.5 mm and 11/64" Connection
To understand why file size matters, you first need to look at how chain pitch and tooth geometry function together. Chain pitch is defined as the distance between any three consecutive rivets divided by two. Common commercial pitches include 1/4", 3/8" Low Profile (Picco), .325", 3/8" standard, and .404". A 4.5 mm file measures precisely 0.177 inches in diameter, making it virtually identical to the 11/64 inch imperial designation. Manufacturers use metric and imperial labels interchangeably depending on where the product is packaged, but the physical tool serves the exact same role in the field.
When you place a round file into the gullet of a saw tooth, exactly 10% to 20% of the file diameter should extend above the top plate of the cutter. If you use a standard 4.8 mm (3/16") file on a chain optimized for 4.5 mm, the file sits too high, failing to establish the correct top-plate hook angle. Conversely, using a smaller 4.0 mm file creates an excessively steep undercut (hook), weakening the tooth tip and causing rapid dulling or severe kickback risks. Matching your chain specifications to the correct tool ensures the original factory side-plate and top-plate cutting angles are preserved over dozens of sharpenings.
Modern mid-range professional and farm-and-ranch chainsaws—typically running 40 cc to 55 cc engines—often rely on .325" pitch chains with gauge widths of .050" (1.3 mm) or .058" (1.5 mm). Brands like STIHL, Husqvarna, and Oregon produce specialized .325" profile lines where a 4.5 mm file is the precise match. For instance, as a .325" cutter wears down over its lifespan, transitioning from a standard 4.8 mm file to a 4.5 mm file helps maintain the correct gullet arc without grinding away essential support metal at the base of the tooth tie-strap.
Technical Specifications and Brand Compatibility
Selecting the right file involves matching both the chain profile and your specific saw setup. Below is a practical technical breakdown comparing common file sizes, target chain pitches, standard saw displacements, and typical applications across major equipment manufacturers.
| File Diameter (Metric / Imperial) | Chain Pitch | Typical Engine Size (cc) | Common Chain Profiles | Primary Application |
|---|---|---|---|---|
| 4.0 mm / 5/32" | 3/8" Low Profile (Picco) | 30 cc – 42 cc | STIHL Picco Micro, Oregon 91PX | Light pruning, homeowner clearing |
| 4.5 mm / 11/64" | .325" (Narrow Kerf / Worn Cutters) | 40 cc – 55 cc | STIHL 23RM Pro, Oregon SpeedCut 95TXL | Firewood cutting, mid-duty forestry |
| 4.8 mm / 3/16" | .325" (Standard Full/semi-chisel) | 45 cc – 60 cc | Husqvarna H25, Oregon 20BPX | General timber processing, logging |
| 5.2 mm / 13/64" | 3/8" Standard Profile | 50 cc – 90 cc | STIHL Rapid Super, Oregon 72LPX | Professional forestry, heavy felling |
Exact Factory Fit: Premium 4.5 mm (11/64") Round Files
When purchasing a high-grade 4.5 mm round file, stick to proven metallurgical brands like Oregon, STIHL, or Vallorbe. Premium files feature double-cut spiral teeth that strip hardened steel efficiently without clogging quickly. Cheaper non-branded steel files wear flat after two or three chain touch-ups, leaving you pushing harder and risking hand injury or ruined cutter angles. Always pair your round file with a rigid, drop-forged steel or composite filing guide to locked-in filing angles relative to the guide bar.
Pro tip: A common mistake I see on cutting jobs is operators forcing a file back and forth like a wood rasp. Chainsaw files are engineered to cut steel on the push stroke only. Dragging the file backward under pressure dulls the tiny cutting teeth on the file instantly, turning a $5 tool into scrap metal in five minutes. Always lift the file off the tooth surface on the return stroke.
Step-by-Step Guide to Sharpening with a 4.5 mm File
Sharpening a chain accurately requires proper workbench stabilization or field-vice setup. Do not attempt to freehand sharp a loose chain sitting on an unbraked guide bar; the bar will rock, leading to uneven top-plate angles and curved cuts in hard timber.
- Set Up Your Work Station and PPE: Secure the saw bar in a stump vice or bench vice. Engagement the chain brake while positioning, but release it when advancing the chain. Wear heavy leather work gloves to protect your hands from sharp cutter edges and wire burrs.
- Locate and Mark the Master Cutter: Find the shortest cutter tooth on the chain or mark one top plate with a bright paint marker. This gives you a clear starting and stopping point so you do not double-file teeth.
- Position the File in the Tooth Gullet: Insert your 4.5 mm file with its guide flat across the top plate and depth gauge (raker). Maintain the manufacturer’s recommended top-plate filing angle—typically 30° for standard cross-cutting or 10° to 15° for specialized ripping applications. Hold the file so 10% to 20% of its diameter sits above the cutter top plate.
- Execute Smooth Push Strokes: Apply smooth, firm, forward pressure directed toward the outside corner of the cutter. Rotate the file slightly in your fingers on each stroke to ensure even wear across the file surface. Count your strokes (usually 3 to 5 light pushes are enough for routine maintenance) and replicate that exact count on every single tooth.
- Flip and Mirror: Once all right-hand cutters are finished, rotate the saw or move to the opposite side of the bar. Sharpen all left-hand cutters using the exact same angle and stroke count to prevent the saw from pulling sideways in long logs.
After filing all teeth back to a keen, silver edge, you must inspect the depth gauges, also known as rakers. The depth gauge controls how deep the leading edge of the tooth bites into the wood grain. On a .325" chain sharpened with a 4.5 mm file, the raker clearance should strictly be maintained between .025" (0.65 mm) and .030" (0.75 mm) below the top plate tip. Use a drop-in progressive depth gauge tool and a flat mill bastard file to strip down high rakers smoothly.
Troubleshooting Common Chain Sharpening Errors
Even seasoned timber cutters occasionally mess up their geometry when filing in the field under poor lighting or bad weather. Recognizing the symptoms of bad filing helps you correct your technique before damaging expensive guide bars or drive sprockets.
If your chainsaw produces fine, brownish sawdust instead of clean, thick wood strands, your cutters are either dull or the filing angle is too flat. When a file sits too low in the gullet due to incorrect file diameter or excessive downward pressure, it creates an extreme "hook" profile. While a heavy hook feels aggressively sharp at first touch, it dulls almost instantly when hitting hardwood like oak or hickory, chatter violently inside the cut, and dramatically increases kickback energy under ANSI B175.1 testing protocols.
The Dedicated Jig: Husqvarna .325" Mini Roller Filing Guide
Conversely, if you hold the file too high, you create a "back-slope" angle where the top plate slopes backward like a chisel edge pushed the wrong way. A back-sloped tooth simply slides over wood fibers without severing them, forcing you to lean heavily on the rear handle. Leaning on a saw creates excessive heat, stretches drive links, ruins bar rails, and increases fuel consumption on a standard 50 cc powerhead by up to 30%.
Choosing Accessories, Brands, and Retailers
When shopping for 4.5 mm (11/64") files, buy complete filing kits rather than bare metal sticks whenever possible. A standard kit includes two round 4.5 mm files, a comfortable wooden or composite quick-attach handle, a rigid metal filing guide stamped with 25°/30° alignment lines, a progressive raker gauge tool, and a flat file for depth gauge adjustment.
You can readily find these kits at major hardware retailers like Home Depot or through dedicated local power equipment dealers. Premium brands like STIHL offer their 2-in-1 filing system (such as the STIHL EasyFile series tailored for specific file diameters), which sharpens the top-plate edge and lowers the depth gauge simultaneously in a single stroke. Oregon offers matching solutions like the SpeedCut system, which utilizes high-carbon steel files engineered specifically for low-friction narrow-kerf cutting systems.
Always inspect your files before heading out into the woods. If the file surfaces look polished or clogged with wood sap and aluminum debris, scrub them clean with a brass wire file card. Never clean steel files with water or store them wet in a damp tool pouch, as surface rust destroys the micro-teeth within days.
Practical Recommendation
If you operate a mid-sized saw running a .325" pitch chain—such as a 50 cc farm saw equipped with an 18-inch bar running a 2-stroke 50:1 fuel-to-oil mix—keep a dedicated 3-pack of high-quality 4.5 mm (11/64") double-cut round files in your field bar bag alongside your timber chaps and eye protection. Start every working day by applying 3 gentle push strokes per tooth with a file guide before fueling up. This small habit takes under 3 minutes, saves engine horsepower, keeps your bar oil consumption balanced, and prevents dangerous saw kickback from dull edge binding.
Frequently Asked Questions
Can I use a 4.8 mm (3/16") file instead of a 4.5 mm file on my chain?
Control & Comfort: Ergonomic Handles & Depth Gauge Tools
While a 4.8 mm file is standard for brand-new, full-sized .325" chains, using it on a worn cutter or narrow-kerf profile places the file too high in the tooth gullet. This reduces the top-plate hook angle and prevents the cutter from taking a proper bite into wood fibers. Always stick to the size recommended by the chain manufacturer or step down to 4.5 mm as the cutter tooth shortens from repeated sharpenings.
Is an 11/64 inch file the exact same size as a 4.5 mm file?
Yes, 4.5 mm converts to approximately 0.177 inches, which is mathematically identical to 11/64 inches in commercial manufacturing tolerances. They are the exact same tool designated under metric versus imperial standard naming conventions.
How often should I sharpen my chain with a 4.5 mm file?
You should touch up your cutter teeth with 2 to 3 file strokes every time you fill your saw's gas tank. Do not wait until the saw stops cutting entirely. If your saw strikes dirt, rocks, or frozen timber, stop immediately and file out the damaged metal before making another cut.
Why is my saw cutting in a curve even after using a 4.5 mm file?
Curved cuts occur when teeth on one side of the chain are filed shorter or at a steeper angle than the opposite side, or when one side has taken dirt impact and remained dull. Measure tooth lengths with a caliper to ensure left and right cutters match, and check that your guide bar rails are worn evenly without flaring on one side.
